A family of high-precision, microprocessor-based test and measurement instruments — the Bursting Strength Tester for paper, board and packaging, the ECOS / VCTS Electrical Check Out System for vehicle electrical testing on the line, and the KV 2500 Ampere-Hour meters. Every one is built for fast, accurate, repeatable results, with PC / Windows software for data acquisition, analysis, reporting and full traceability.

Accurate on the bench, connected to the PC or the line — every test recorded, every result reportable, every unit traceable.

Three instruments, one QC philosophy

Different tests, the same DNA — precision sensing, microprocessor control, and software that records, reports and traces every result.

Bursting Strength TesterRupture pressure of paper, board, corrugated, textile, leather & packaging

ECOS / VCTSComputerized vehicle electrical-circuit testing on the assembly line

Ampere-Hour metersKV 2500 Series AH metering with set-points & relay trips

Panel instrumentsRPM, timers, counters, flow — the measurement backbone

PC / Windows softwareData acquisition, SPC, reports, history & traceability

Custom test rigsInstruments engineered to a specific test

What ties them together

🎯

High-accuracy measurement

Precision sensing and engineering for results you can trust and defend against a standard.

🔢

Microprocessor / computerized

Digital controllers and Windows software — consistent, repeatable, self-calibrating.

🖥

PC connectivity

RS-232 / RS485 / Wi-Fi to a PC for live monitoring, storage and reports.

📋

Data & traceability

Results stored, retrieved, exported and SPC-analysed — documentation built in.

Built for

Automotive OEM & assembly linesQuality-control laboratoriesPaper & packaging Textile & leatherBattery & energyElectroplating & finishing R&D centresEducational & testing institutes

Instrument 01

Bursting Strength Tester

Determines the bursting strength of a material — the maximum hydraulic pressure a specimen withstands before it ruptures.

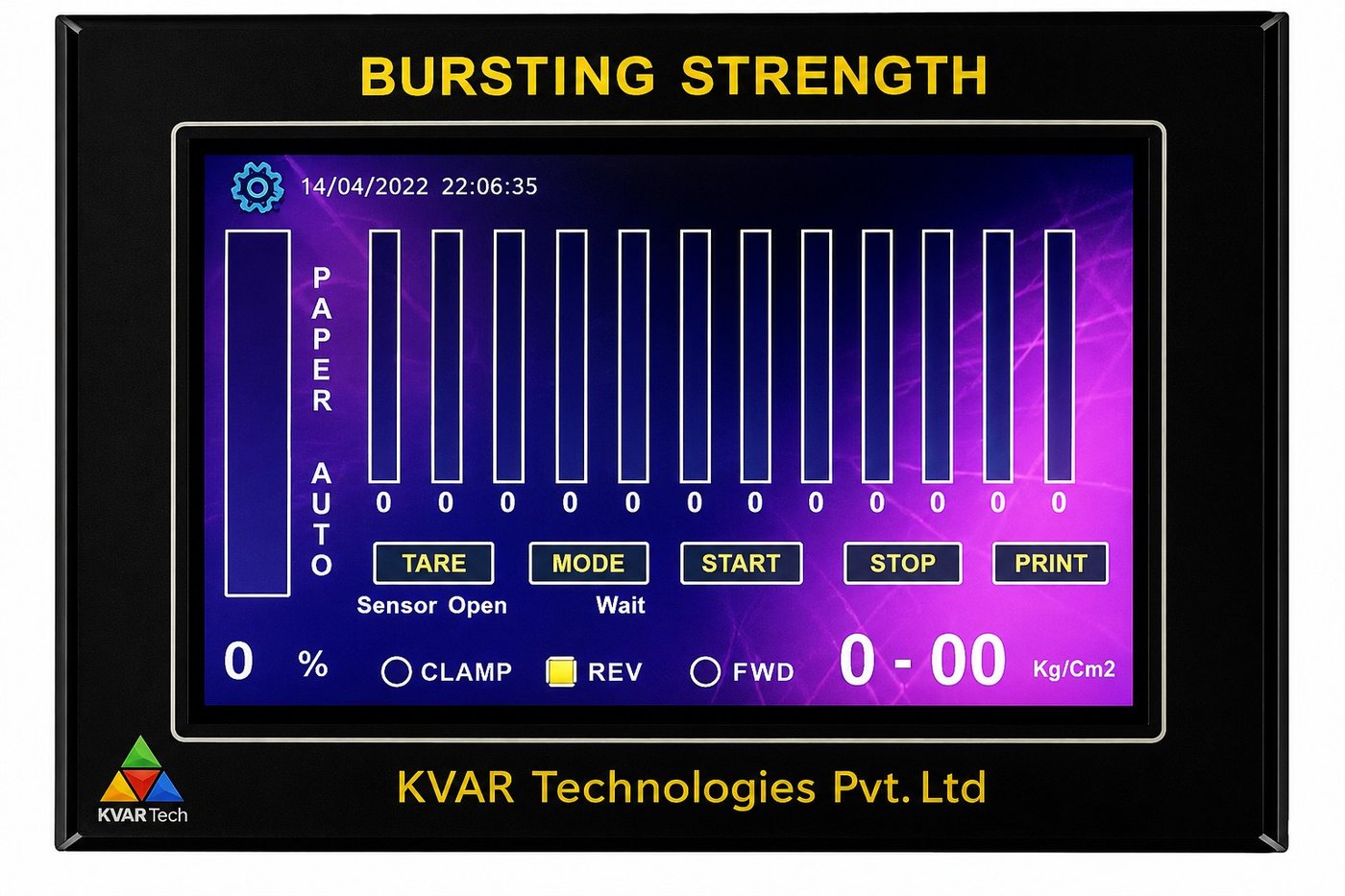

BURSTING STRENGTH TESTERphoto to follow

Designed with advanced electronics and precision engineering, the tester delivers fast, accurate and repeatable results across paper, paperboard, corrugated boxes, textiles, leather, non-woven fabrics and packaging materials. It is equipped with RS-232 communication and dedicated PC software for data transfer, test monitoring, report generation and result management — helping manufacturers ensure product durability and compliance with quality standards.

PaperPaperboardCorrugated boxesTextilesLeatherNon-woven fabricsPackaging

Key features

High-accuracy pressure measurement
Digital microprocessor-based controller
RS-232 interface for PC connectivity
Dedicated PC software — acquisition & reports
Real-time display of test results
User-friendly intuitive controls
Fast and repeatable testing
Rugged construction for long service life
Low maintenance, reliable performance
Compliance with international testing standards

PC software

📺

Live monitoring

Watch the test on the PC as pressure builds to rupture.

💾

Auto-storage & reports

Every result stored automatically; reports generated and printed.

📁

History & export

Retrieve past tests and export data for analysis and traceability.

🛠

Precision, reliability and intelligent data management in one system. Built from premium-quality components, it provides consistent performance, minimises testing errors and raises productivity in laboratory and production environments — with complete traceability. Measuring range, capacity and clamping are configured to the material and standard.

Instrument 02

ECOS — Electrical Check Out System

Also known as the Vehicle Current Testing System (VCTS) — a computerized solution that verifies a vehicle’s electrical circuits quickly, accurately and reliably.

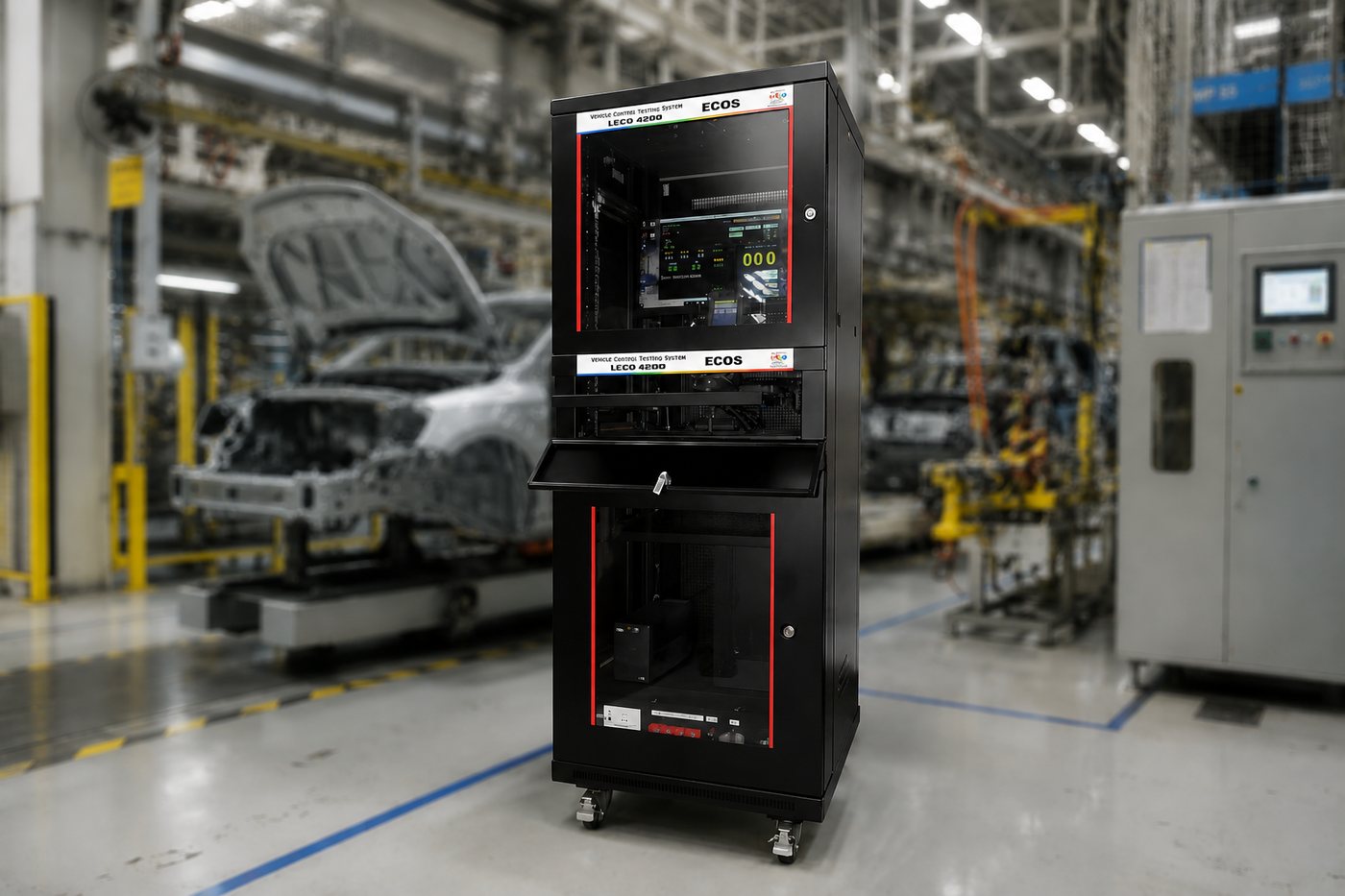

ECOS / VCTS vehicle electrical test system

ECOS / VCTSphoto to follow

ECOS automatically measures, records and analyses the voltage and current of a vehicle’s electrical circuits, cutting testing time while improving production efficiency and quality control. Built for automotive manufacturing and assembly lines, it eliminates manual testing errors with automated data acquisition, real-time analysis and comprehensive reports. Programmable test sequences and model-specific configurations let one line test multiple vehicle variants.

Automotive EOLProgrammable sequencesModel-specificNon-intrusiveSPC reports

Key features

Fully computerized vehicle circuit testing
Automatic voltage & current measurement
Windows-based application software
Real-time data acquisition & analysis
Automatic report generation
Programmable test parameters per model
Self-calibration facility
Password-protected secured settings
PDA-based remote operation
Clip-on DC Tong Tester — non-intrusive current
No need to break the electrical circuit
Historical data storage & retrieval
Export to external database formats
SPC reports for quality analysis
Multi-level user access & security

System components

Industrial PCWith preloaded VCTS Windows software

Rack-mounted controllerIndustrial rack controller

Monitor, keyboard, mouseOperator console

UPSUninterrupted operation

Wi-Fi interfaceWireless communication

Calibration unitOn-site calibration

PDA remoteHandheld controller

DC Tong Current TesterBattery clamps + shielded cable

Benefits

✓

Faster testing — reduced inspection time per vehicle.

✓

Higher line productivity — more throughput on the same line.

✓

Less manpower — automated acquisition, fewer testers.

✓

Accurate & repeatable — consistent measurements every time.

✓

No recording errors — manual entry eliminated.

✓

Automatic digital reports — generated at end of test.

✓

Full traceability — every test stored and retrievable.

✓

Easy reject analysis — rejected vehicles and quality trends.

✓

Process consistency — improved reliability of the product.

🚗

Why KVAR ECOS. Engineered for modern automotive manufacturing, it combines precision hardware with intelligent software for rapid, reliable, repeatable electrical testing — while keeping complete digital records for traceability and quality assurance. Its modular architecture, programmable routines and advanced reporting help manufacturers raise productivity, cut testing errors and hold the highest standards of vehicle quality.

Instrument 03

Ampere-Hour Meters — KV 2500 Series

Measure and display ampere-hours — the charge (current × time) that has actually passed — wherever the quantity of current, not just its value, is what matters.

KVAR KV 2500 Ampere Hour Meter on a battery charger panel

AMPERE HOUR METERKV 2500 Series

The KV 2500 / IM 25xx Series is a family of 15+ panel-mounting, microprocessor-based Ampere-Hour meters. A 7-segment LED display reads ampere-hours and live current, with programmable set-points driving relay outputs. Current is read through a 0–75 mV shunt (programmable from the keyboard), and a floating decimal point auto-selects to the shunt value — ideal for battery, plating and process duty where the charge passed decides the result.

KV 2500 / IM 25xx7-segment LED0–75 mV shuntSet-point relaysRS485 / Modbus96×96 panel

Features

7-segment LED display — 4 or 6 digit
Floating decimal auto-selected by shunt value
Programmable 0–75 mV shunt input from keyboard
Ah range 0–500 up to 0–999999 (by model)
Battery charge / discharge monitoring
Rectifier on / off control
Preset count with relay output
External reset input to reset count
Dust-proof membrane keyboard for programming
Wide-input power — AC & DC options, battery backup

Specifications

Parameter	Specification
Display	7-segment LED, 4 or 6 digit; floating decimal point auto-selected by shunt
Shunt input	0–75 mV, programmable from the keyboard
Ampere-hour range	0–500 Ah up to 0–999999 Ah (model dependent)
Outputs	Relay 230 V / 5 A; preset with relay; external reset input
Communication	RS485, Modbus, 4–20 mA, 0–10 V (optional)
Power supply	110–230 VAC / 10–30, 24–48, 48–72, 110–230 VDC; battery backup option
Enclosure	Panel mount 96 × 96 × 150 mm, MS box, ~1 kg
Programming	Dust-proof membrane keyboard

Model variants

IM2501 / IM2506Standard 4-digit / 6-digit meters (up to 0–999999 Ah)

IM2503 / IM2509Doser control — 2 / 3 relays for plating chemical dosing

IM2505Large battery-bank charge tracking

IM2507Dual displays — separate charge / discharge

IM2511Logger — DC voltage, current & energy over time

IM2513Central controller — up to 8 meters / injection points

Where it is used

Battery monitoringCharge / discharge & capacity; large banks, UPS & inverters

ElectroplatingGold / silver / nickel plating dose by AH; doser control

Metal finishing & anodizingConsistent coating by charge passed

Solar chargingCharge measurement in solar systems

Water treatmentChlorination / dosing by ampere-hours

R&D & processMeasured charge for electrolysis & experiments

15+ variants — current range, shunt, display, communication and set-point / relay / doser configuration are set to the application. Full range at kvartech.com/ampere-hour-meter. Ampere-Hour meters also appear in the panel-instruments range on the Instruments tab.

In service

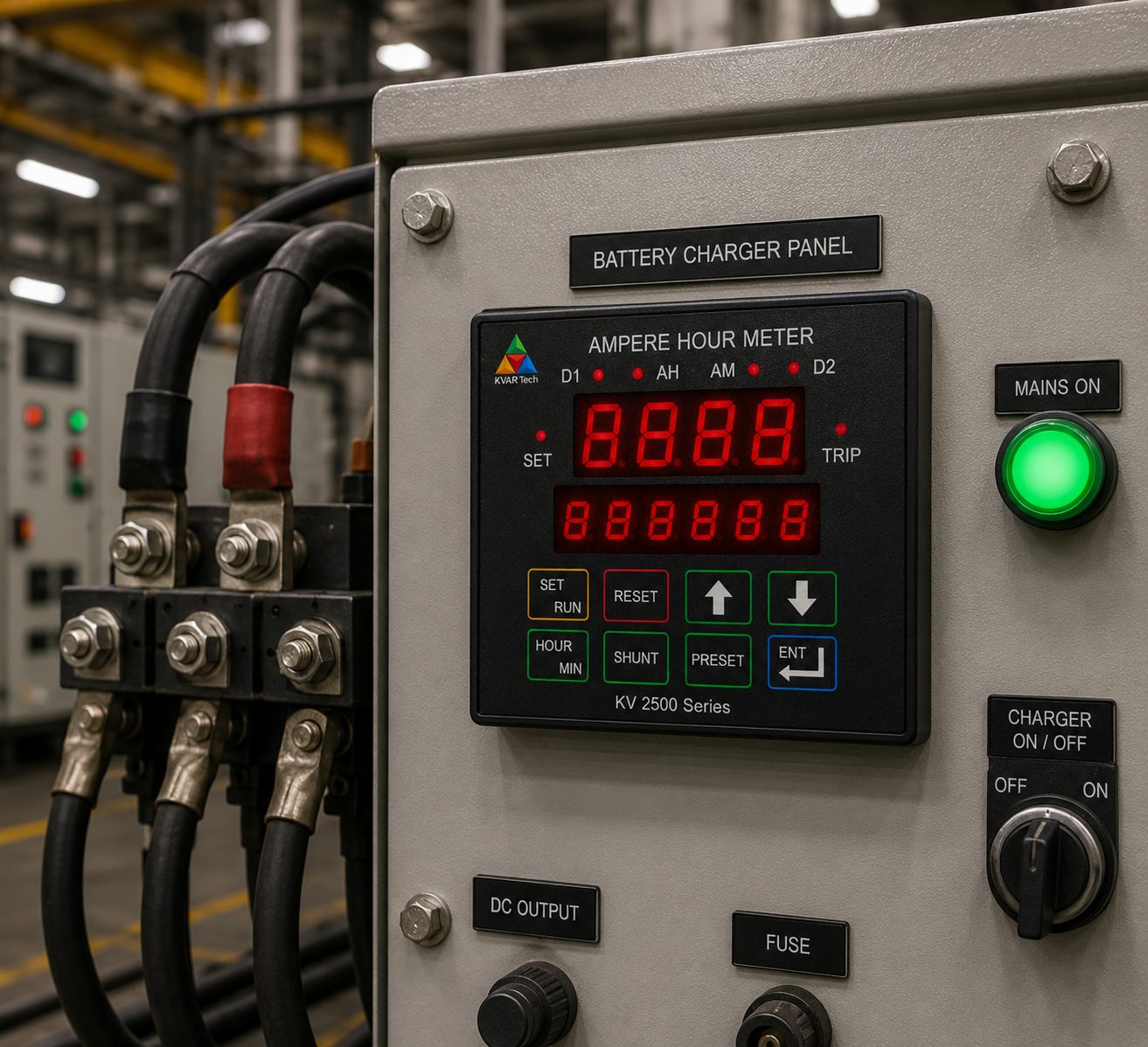

KV 2500 Ampere Hour Meter on a battery charger panel — **KV 2500 — battery charger panel** — ampere-hour metering with SET / TRIP set-points and D1 / D2 relays built into a charger panel.

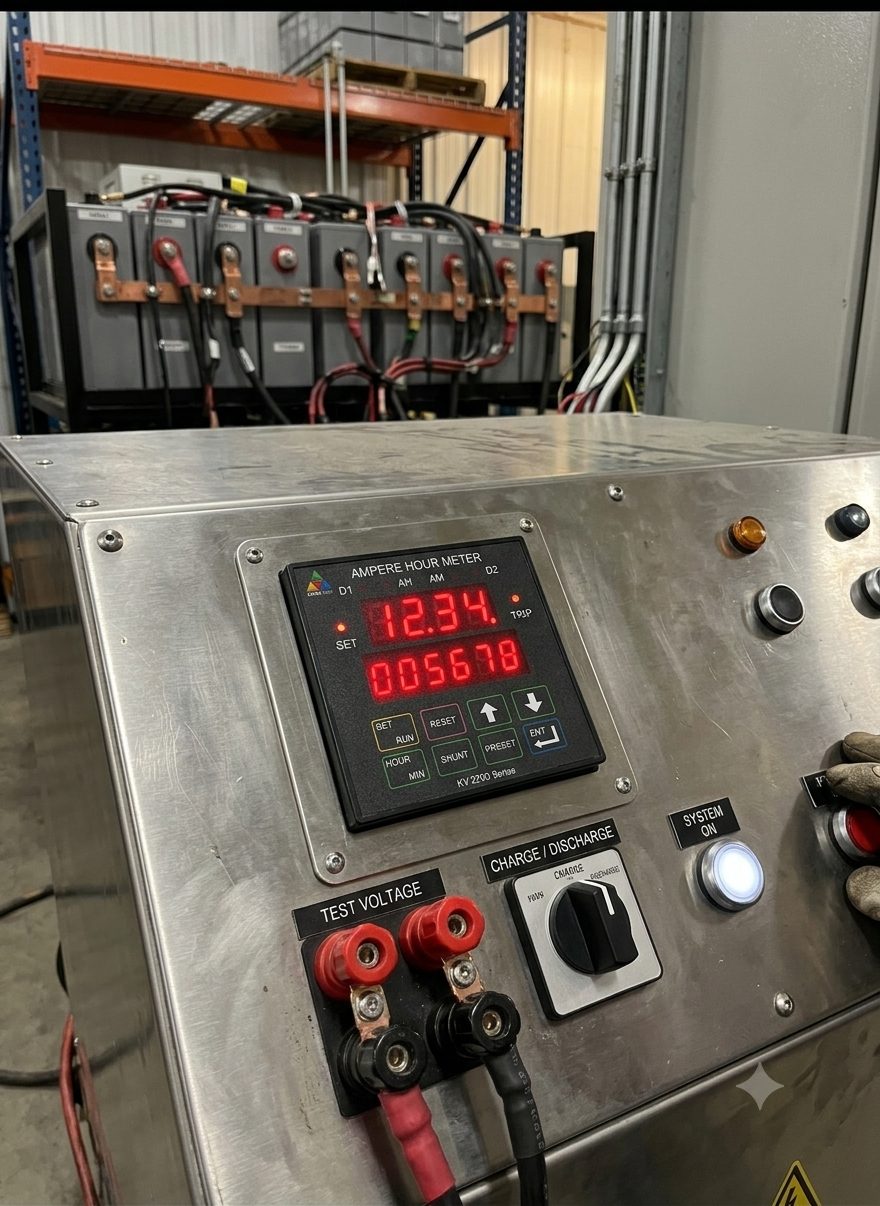

KV 2200 Ampere Hour Meter on a battery test / charge-discharge rig — **KV 2200 — battery bank test** — ampere-hours on a charge / discharge test rig with shunt input and test-voltage terminals.

Panel instruments

The measurement backbone

Panel-mount indicators, counters and totalisers — RPM, length, batch, flow and time — the everyday instruments that keep a line measured and controlled. As manufactured & supplied on kvartech.com.

RPM indicators6-digit; NPN / PNP / encoder input; Modbus RS485; SD-card logger variant. RPM / RPS or custom units (m/min, L/min) — paper, textile, flow.

Timers & countersPreset, length (programmable wheel dia.), batch, up/down; 4 & 6 digit with relay outputs — wire drawing, yarn winding, batching, length control.

Flow totaliser & countersSpecial-purpose counters and flow totalising for batching, dosing and utilities.

Ampere-Hour metersProgrammable AH, Industrial KAH, IM 2501, IM 251T (AH + timer), DC watt meter — full range on the Ampere-Hour Meters tab.

Ethernet moduleModbus-TCP bridge — brings legacy instruments onto the network.

OEM modulesBoard-level metering modules (e.g. TE2504) to embed into your own product.

Ranges, inputs (NPN / PNP / encoder / analog) and communication (RS485 / Modbus / Ethernet) are configured to the application.

Applications & ROI

On the bench, on the PC, or on the line

Take an instrument on its own, connected to the PC software for records, or integrated into the production line for end-of-line testing.

Option 01

Standalone instrument

Bursting Strength Tester or AH meter on the bench / panel
Real-time on-instrument display
Microprocessor controller, rugged build
Fast, accurate, repeatable

For a QC check used on the spot.

Option 02

Instrument + PC software

RS-232 / RS485 link to the software
Live monitoring, auto-storage, reports
History, export, SPC & traceability
Audit-ready documentation

For a lab that must record, report and trace every test.

Option 03

Integrated on the line

ECOS / VCTS at end-of-line
Programmable, model-specific sequences
Wi-Fi, PDA remote, multi-user security
Automatic reports & reject analysis

For automotive EOL and high-volume testing.

Applications across the range

Automotive OEM production linesVehicle assembly & EOL testingElectrical-circuit verification Paper, board & corrugatedPackaging & convertingTextile, non-woven & leather Battery & electroplatingQA laboratoriesR&D & component validation Educational & testing institutes

Return on investment

✓

Faster testing — less inspection time, more throughput on the same line or bench.

✓

Fewer errors — automated measurement and recording remove manual mistakes.

✓

Less manpower — automated acquisition frees testers for other work.

✓

Compliance, proven — test to standard and hold the record an auditor asks for.

✓

Full traceability — every test stored, retrievable and reportable; easy reject analysis.

✓

Long service life — rugged build, low maintenance; buy once, run for years.

From a reading on a dial — to a test recorded, reported and traceable.

Testing instruments are configured to the material, vehicle, test and standard; measuring ranges, capacities, shunts and test sequences are fixed against the model and requirement, and a firm quotation is prepared against it. Instrument photographs to follow. Contact KVAR Technologies for the specification and a demonstration.
